A LJT-4DHLC Automatic High Speed Cardboard Paper Tube Core Making Machine

FOB Reference Price:Get Latest Price
$50,000.00 - $55,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LJT-4DHLC
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Core Machine
Processing Type:
Winding Machine
Power(W):
22kw
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Applicable Industries:
package
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huanlong
Voltage:
made to order
Dimension(L*W*H):
6900*2050*2300mm
Weight:
/
Certification:
CE
Production Capacity:
5sets/month
Name:
LJT-4DHLC paper tube making machine
Quality:
Good, brand-new
Machine head:
Four drums
Automatic degree:
Digital control
Motor:
Servo motor
Control system:
Siemens PLC
Productive Material:
Bobbin, Kraft Paper, Glue
After-sale service:
Engineer Install
Guarantee period:
1 Year
Supply Ability
Supply Ability:
5 Set/Sets per Month Production is busy, earlier order is better
Packaging & Delivery
Packaging Details
Packed with wooden pallet and wooden box;if need fumigated wooden pallet and case, just tell us in advance, thanks.
Port
Ningbo Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Technical Parameter
Applicable Technical Parameters
Name&Model
LJT-4DHLC  High Precision Cardboard Paper Tube Core Winding Machine
Paper tube ID
40-350mm
Paper tube thickness
3-20mm
Paper gramme
200-600GSM
Paper ply no.
30plies
Machinery speed
1-20m/min (depend on tube sizes, material quality and operator skill )
In-line cut off length
1000-4000mm
In-line cut off unit
HLC double circular knives cut off unit
Spiral winding part
Four drums

Machinery main function

●Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting.
●Adopt human-machine operation interface, more convenient for operation.
●Mechanical loading paper reels, reduce labor force.
●Paper ply tension control system, cylinder press paper ply firmly, can adjust tension freely.
●Supply gluing pots and pressure tension control system; adopt single or double side gluing depends on tube required strength.
● Flanged shaft with flexile design, suit with tapered mandrel, can do fine-turning to tube inside diameter.
●Automatic alarm when bottom-ply broken, and stop machine; avoid glue adhere to mandrel and difficult to clear away.
●Tube in-line cutting moving speed controlled by servo motor, tracking with tube production speed to be synchronously.
●Machine frame is with the anti-deformation treatment, ensures machinery running stability and working precision.
●Note: above are just parts STANDARD technical parameters for reference; For confirm the most suitable mold, please tell us your practical parameters and requirements by email, then we will give you our advise and machine details, thanks.
Detailed Images
Pic 1: spiral winding part, machinery main part with in-line cutting unit, double circular knives.

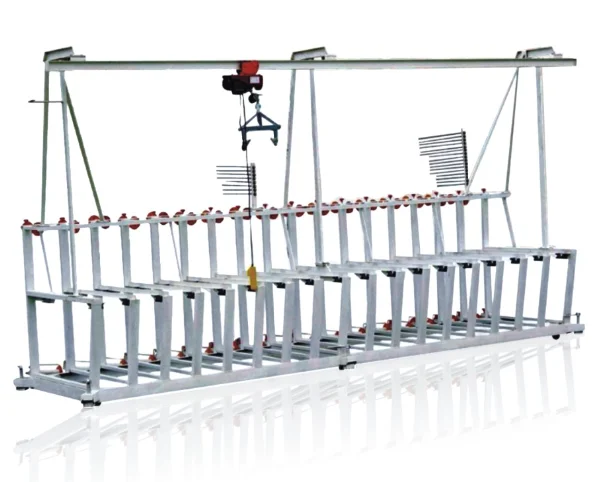

Pic 2: paper reel stand, model ZT. This model can load 30 paper rolls.
Pic 3: cascade glue unit, model PL. This model can pass 30 paper plies.
Packing & Delivery
Other machines
Dear, we still have all the machines to produce the paper tubes as below.

Paper tube production line

Paper slitter rewinder
slit jumpo paper roll into narrow reels.
Paper tube winder
spiral windering paper plies into paper tube in long length.
Paper tube dryer
dry paper tube to achieve higher compressive strength and straightness, especially for high quality paper tube and textile paper tube like POY/DTY/FDY paper tube.
Paper tube recutter
recut long tube into short length,min 10mm.
Other postprocessing machines
like paper tube edge/surface polisher,paper tube curler,etc., are for some special purpose paper tube.
Our Company

Yueqing HUANLONG Machine Factory

Founded in 1983, covering nearly 20 acres, is the main production base paper tube equipment. 145 employees, including technical department personnel 10 people, the development group 3 of 10 people, mainly engaged in new product trial, the old product improvements. Other management staff of 21 people.

HUANLONG Industrial Co., Ltd. Suzhou Central:

We founded Suzhou HUANLONG Industrial Co., Ltd. in 2004, the company registered capital of 15 million, covering 40 acres, is mainly engaged in the production and improve the equipment, improve and explore new technology.

HUANLONG Machine Co., Ltd., Zhejiang Central:

we established HUANLONG Machine Co., Ltd. in 2013, address is Zhejiang Central near Hangzhou. Companies registered capital of 80 million, covering 100 acres, with a total construction area of 55,000 square meters.

Exhibition Activity
Certifications
FAQ

1.Will you provide engineers for machinery installation?
Engineers oversea service for machinery installation is available, all engineers at least 10 years experience.

2.Our required parameter is not standard,can made to order?
Our machines can made to order according to customer's requirement.

3.What's your payment terms?
We accept L/C,TT((30% as deposit, 70% before shipment).

4. Any other question, welcome to call me.
