SJQ-D high precision in length accuracy paper core cutting machine, paper tube recutter machinery

FOB Reference Price:Get Latest Price
$22,222.00 - $33,333.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJQ-D
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Core Machine
Processing Type:
Cutting Machine
Power(W):
2.2kw
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Retail, Construction works , Advertising Company
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huanlong
Voltage:
220v/380v,50hz,3phase(made to order)
Dimension(L*W*H):
2750*950*1060mm
Weight:
300kg
Certification:
CE
Production Capacity:
6 pcs/min
Machine Type:
SJQ-D high mechanism processing accuracy paper core cutting machine
Function:
Recutting long tube into short ones
Painting Color:
Orange and White
Quality:
Good, brand-new
Knife number:
One knife
Digital control:
YES
Control system:
Siemens PLC
Motor:
Servo motor
Supply Ability
Supply Ability:
10 Set/Sets per Month Production is busy, earlier order is better.
Packaging & Delivery
Packaging Details
film cover + fumigated wooden pallet, some fumigated wooden case then container.
Port
Ningbo,shanghai
Contact Us Get More
Name:
Sun Lin
Tel:
+86-577-62277578
Whatsapp/Phone:
+86-15067778731
Mail:
13868576172@@huanlong.net
Technical Parameter
Tube inside diameter
50-152mm
Tube thickness
  3-15mm
Parent tube length
1600mm
Tube recut length
  min 10mm
Cutting Precision
     ± 0.3mm
Knife carriage moving speed
300mm/sec
Recut speed
1cycle/sec(speed changes in different tube specification)
Air pressure
0.6Mpa
Pneumatic cut
/
Paper tube length feedback system
Japan Omron
Machine main functions
●Adopt micro-computer to set recut length,high precision;Adjust data conveniently on touch screen;
●Adopt human-machine interface and specialized operation system,easier to operate;
●High mechanism processing accuracy,the tolerance of recut tube length can be controlled within +/- 0.3mm;
●Tube is cut by tungsten steel circular knife;
●Manually tube loading and unloading;
●No need to adjust knives distance,only need to put in required data on touch-screen,saving time and
   avoiding tube waste caused by inaccurate manual knives-adjustment;
●Knife rotates a certain angle after every cut,reducing knife damage, prolonging knife's using life;
●When knife is partly broken, still can cut, just turn an angle then fasten it;Prolong knife using life;
●Knife adjusting part is equipped with a precise dial gauge,ensuring knife touches mandrel in a exactly
    position; Reduce damage to mandrel cause by knife touch;
●Tube rotates while knife does not rotate.Smooth cut surface comes out by the friction between knife and
    rotating tube;
●Tube rotates while mandrel does not rotate.Reduce damage to knife and mandrel,prolonging using life;If
    mandrel also rotates in cutting,it will form a cutting circle line on mandrel;While mandrel doesn't rotate,only
    a cutting point on mandrel;
Basic delivery scope
Motor
2.2kw
Cutting kinfe
 1 set
Cutting mandrel
1set(denpends on customer's requirement)
Cutting orientation
Servo Motor
Touch-control operation system
1 set
Tube length setting system
1 set (Japanese Yaskawa 1 KW)
Recut length setting mold
Taiwan WEN-View touch screen
Activity controlling computer
Siemens PLC
Main parts material and instruction
●Machine installed cover and door are made of cold plating sheet;
●Machinery frame is welded by heavy channel steel and iron sheet.
●Tungsten steel circular knife.

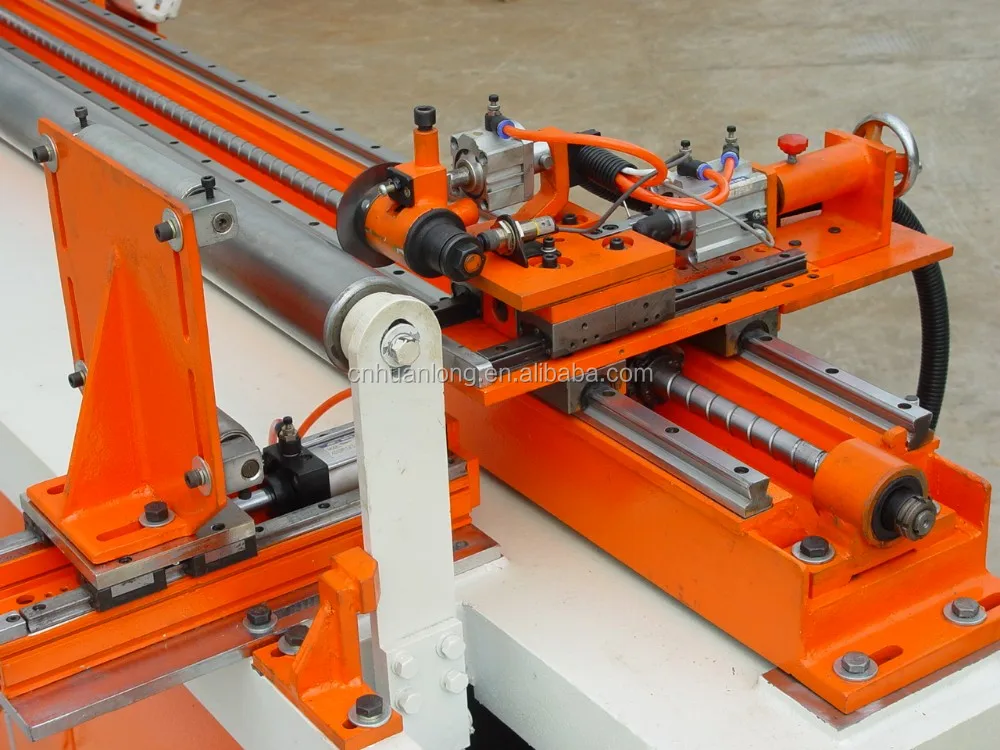

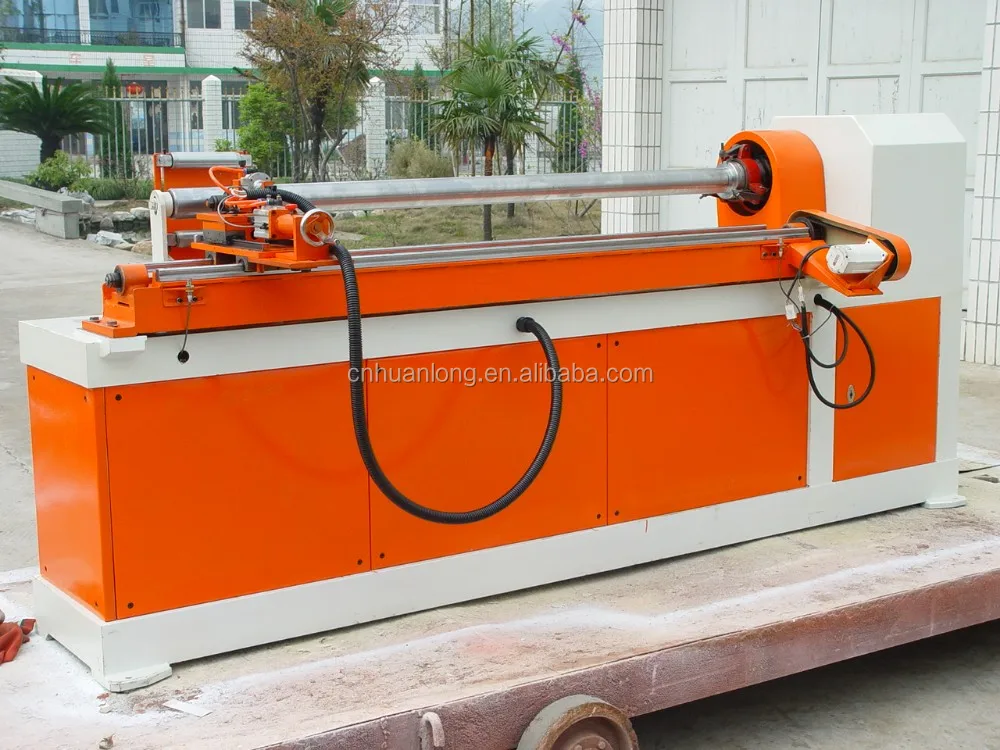

Detailed Images
