SJQ-3DNC Digital Control High Speed Paper Tube Cutting Machine

FOB Reference Price:Get Latest Price
$39,000.00 - $42,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJQ-3DNC
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Core Machine
Processing Type:
Cutting Machine
Power(W):
2.2kw
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huanlong
Voltage:
380v,50hz
Dimension(L*W*H):
3300*1100*1400mm
Weight:
400kg
Certification:
CE
Production Capacity:
5sets/month
Machine Type:
SJQ-3DNC high efficiency paper core recutter
Function:
Recutting long tube into short ones
Quality:
Good, brand-new
Performance:
Stable
Knife number:
One knife
Digital control:
YES
Control system:
Siemens PLC
Motor:
Servo motor
Guarantee period:
1 Year
Supply Ability
Supply Ability:
5 Set/Sets per Month Production is busy, earlier order is better.
Packaging & Delivery
Packaging Details
Package with some film cover + fumigated wooden pallet, some fumigated wooden case then container.
Port
Ningbo Port,Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Technical Parameter
Technical Specification
Name
SJQ-3DNC Automatic High Speed Paper Tube Core Cutting Machine
Tube inside diameter
76-152mm
Working air pressure
0.6Mpa
Tube wall thickness
3-15mm
Knives number
one set
Parent tube length
1600mm/3200mm
Main motor
2.2Kw
Recut tube length
Min.10mm
Operator
1 person
Knife moving speed
500mm/second
Cutting speed
1cut cycle/ 2seconds (speed changed depends on tube size)
Servo motor
1.0KW Japanese Yaskawa
Cut length setting mold
Taiwan WEN-View touch screen
Activity controlling computer
Siemens PLC
Cutting motion
By pneumatic system
Machine main functions
●Adopt micro-computer for length setting, precise cut effect; touch screen to adjust data, more convenient;
●Adopt human-machine interface and specialized operation system, more convenient;

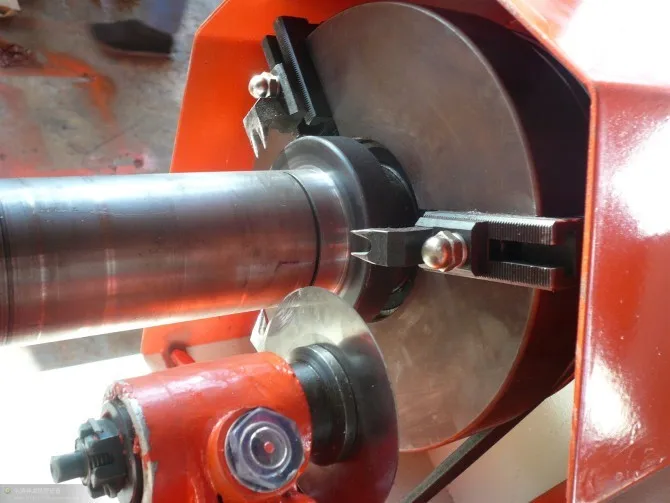

●Tube cut by tungsten steel circular knife;
●Fully automatic uploading and downloading paper tube;
●No need to adjust knives distance, because only one knife. What you do is just put in data you required on touch-screen; save time, and avoid tube waste caused by the imprecise manual knives –adjusting work;
●Knife will rotate a certain angle after one cutting. For deduce damage to knife, let the cut point have enough time to cooling, prolong knife's using life;
●When cut knife is partly broken, it can continue for cutting, just loose it and turn an angle then fasten it; Prolong knife using life;

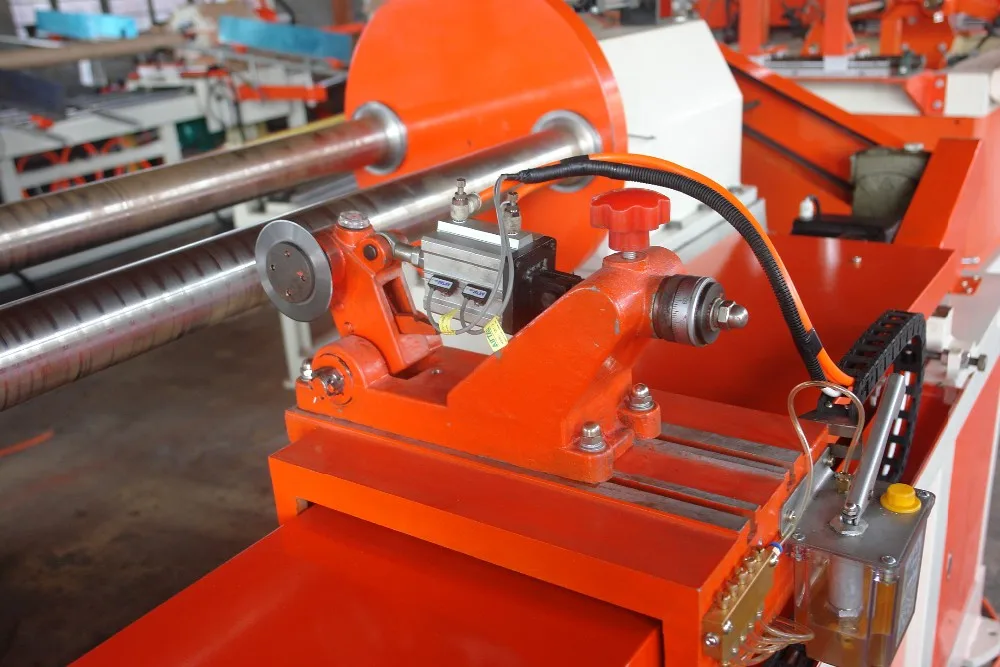

●The cutting knife adjusting part is equipped with a precise dial gauge, it ensures knife touches with shaft in a just ok position; Reduce knife's damage to shaft;
●Tube rotating but mandrel does not rotating. Reduce damage to knife and mandrel, prolong using life; If mandrel also rotating when cutting, it will form a circle line on mandrel; if mandrel is fixed, it only cause a cutting point on mandrel;
●Knife equipped with oil lubrication device; reducing knife abrasion, and bring away parts dust on tube ends.
●Machine frame and door adopt cold panel plating mold.
Detailed Images




Packing & Delivery
Other machines
Dear, we also have other machines to produce paper tubes cores as below.

Paper tube production line

Paper slitter rewinder
slit jumpo paper roll into narrow reels.
Paper tube winder
spiral windering paper plies into paper tube in long length.
Paper tube dryer
dry paper tube to achieve higher compressive strength and straightness, especially for high quality paper tube and textile paper tube like POY/DTY/FDY paper tube.
Paper tube recutter
recut long tube into short length,min 10mm.
Other postprocessing machines
like paper tube edge/surface polisher,paper tube curler,etc., are for some special purpose paper tube.
Our Company

Yueqing HUANLONG Machine Factory

Founded in 1983, covering nearly 20 acres, is the main production base paper tube equipment. 145 employees, including technical department personnel 10 people, the development group 3 of 10 people, mainly engaged in new product trial, the old product improvements. Other management staff of 21 people.

HUANLONG Industrial Co., Ltd. Suzhou Central:

We founded Suzhou HUANLONG Industrial Co., Ltd. in 2004, the company registered capital of 15 million, covering 40 acres, is mainly engaged in the production and improve the equipment, improve and explore new technology.

HUANLONG Machine Co., Ltd., Zhejiang Central:

we established HUANLONG Machine Co., Ltd. in 2013, address is Zhejiang Central near Hangzhou. Companies registered capital of 80 million, covering 100 acres, with a total construction area of 55,000 square meters.

Workshop
Exhibition
FAQ

1.Will you provide engineers for machinery installation?
Engineers oversea service for machinery installation is available, all engineers at least 10 years experience.

2.Our required parameter is not standard,can made to order?
Our machines can made to order according to customer's requirement.

3.What's your payment terms?
We accept L/C,TT((30% as deposit, 70% before shipment).
