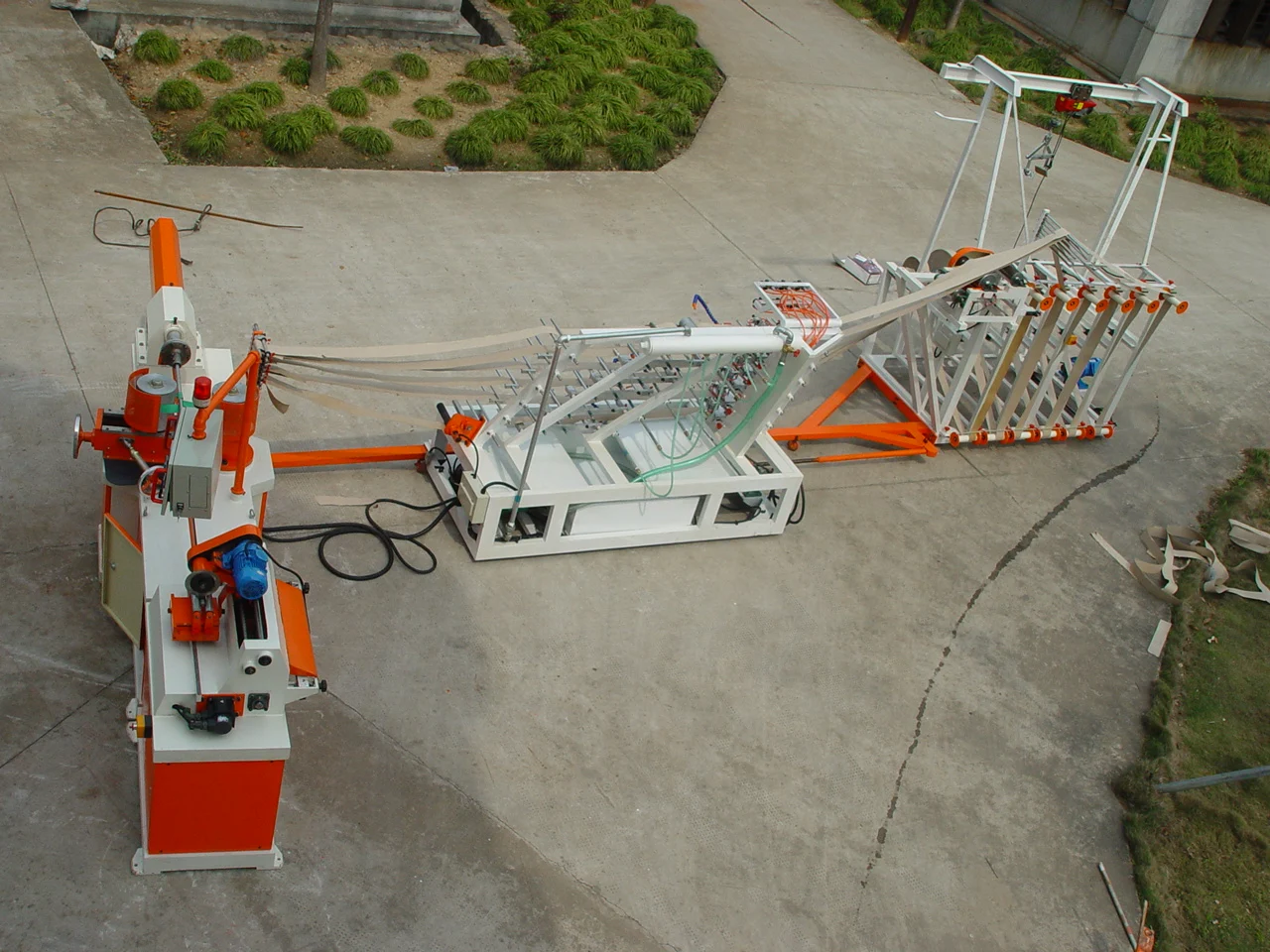

LW-2DHMC(ZT+PL) Numerical Control Spiral Paper Tube Making Machine Winder

FOB Reference Price:Get Latest Price
$12,000.00 - $16,666.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LW-2D HMC(ZT+PL)
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Core Machine
Processing Type:
Winding Machine
Power(W):
11kw
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Applicable Industries:
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Huanlong
Voltage:
Customized
Dimension(L*W*H):
3100*1200*1500mm
Weight:
1700kgs
Certification:
CE
Production Capacity:
15meter/min
Function:
Numerical Control Spiral Paper Tube Making Machine
Quality:
Good, brand-new
Winding type:
Spiral winding
Automatic degree:
digital control
Color:
Orange/White
Productive Material:
Bobbin, Kraft Paper and Glue
After-service:
Engineer Install
Productive Materia:
coreboard paper,PVC glue or dextrine glue
Belt:
1pcs
Supply Ability
Supply Ability:
7 Set/Sets per Month earlier order is better for Numerical Control Spiral Paper Tube
Packaging & Delivery
Packaging Details
Numerical Control Spiral Paper Tube Making Machine:some flim cover+ fumigated wooden pallet,some fumigated wooden case,then container
Port
Ningbo Port for Numerical Control Spiral Paper Tube Making Machine
Contact Us get More2
Name:
Sun Lin
Tel:
+86-577-62277578
Whatsapp/Phone:
+86-15067778731
Mail:
13868576172@@huanlong.net
Technical Parameter
Paper tube ID:
20-76mm
Paper tube thickness:
1.5-6mm
Paper tube length:
min200mm
Paper ply no.:
12plies
Machinery speed:
Max 12m/min
In-line cutter:
Multi circular knife
Windering drums:
2 drums
Paper reel seat equipped with lifting crane.
Paper reel stand and glue unti movement:0.75kw motor to adjust reel stand and glue unit angle
Glue transferring accelerating pump: Pneumatic diaphragm pump.
Glue transferring pipeline: include collect barrel.
Gluing system: include glue pot and pneumatic tension control,can adopt double or single ply gluing mold according to required tube compressive strength
Paper ply tension adjustor: 10pcs tension controller, driven by pneumatic system
Hanging-type operation panel, specialized operation system,touch screen displays in English.
Separate electric apparatus box.
Gear shifting is designed to suit to tubes in different specifications;

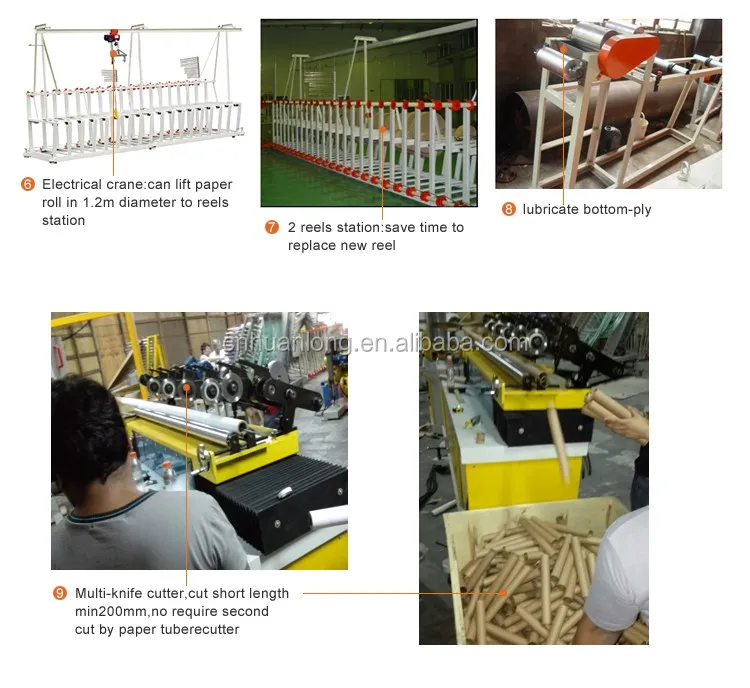

Detailed Images
